Ambolte og pres cylindre

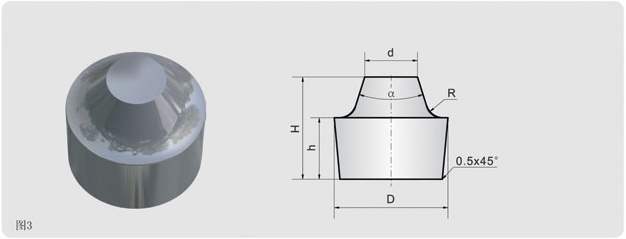

Wolframcarbid Ambolte
|
|||||||||
| Type | Dimensions(mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| D | Tolerance | H | Tolerance | d | Tolerance | h | a | R | |
| DC235 | 83.0 | 0~+1.5 | 76.5 | 0~+2.0 | 35.5 | 0~+1.5 | 47.75 | 60 | 25.4 |
| DC242 | 111.2 | 0~+2.5 | 88.5 | 0~+2.0 | 42.5 | 0~+1.5 | 51.4 | 60 | 24.5 |
| DC260 | 145.5 | 0~+2.5 | 107.5 | 0~+2.0 | 60.5 | 0~+1.5 | 65.0 | 50 | 30.0 |
