Conseils de carbure de tungstène brasé

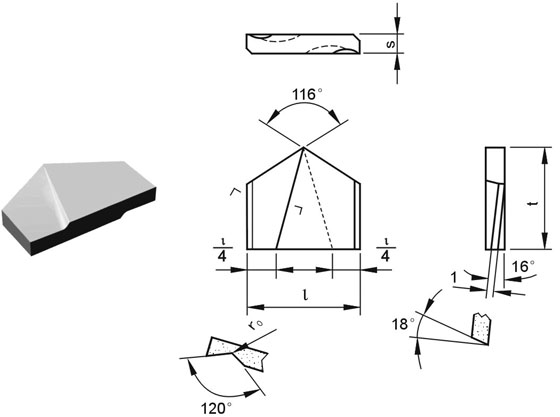

Conseils brasées de type E2
Carbure de tungstène brasés type de conseils E2
|
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||
|
l
|
t
|
s
|
r0
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
E210
|
10.8
|
9.0
|
2.0
|
1.0
|
2.1
|
2.0
|
1.8
|
1.6
|
|
E211
|
11.8
|
10.0
|
2.5
|
1.0
|
3.3
|
3.3
|
2.6
|
2.4
|
|
E213
|
13.0
|
11.0
|
2.5
|
1.0
|
3.3
|
3.8
|
3.3
|
3.0
|
|
E214
|
14.0
|
12.0
|
2.5
|
1.0
|
4.6
|
4.5
|
3.8
|
3.5
|
|
E215
|
15.0
|
13.0
|
2.5
|
1.0
|
5.2
|
5.1
|
4.4
|
4.0
|
|
E216
|
16.0
|
14.0
|
3.0
|
1.0
|
7.3
|
7.2
|
6.1
|
5.5
|
|
E217
|
17.0
|
15.0
|
3.0
|
1.5
|
8.2
|
8.1
|
6.9
|
6.3
|
|
E218
|
18.0
|
16.0
|
3.0
|
1.5
|
9.1
|
9.0
|
7.8
|
7.1
|
|
E219
|
19.0
|
17.0
|
3.0
|
1.5
|
10.3
|
10.2
|
8.7
|
7.9
|
|
E220
|
20.0
|
18.0
|
3.5
|
1.5
|
13.6
|
13.4
|
11.2
|
10.2
|
|
E221
|
21.0
|
18.0
|
3.5
|
1.5
|
14.3
|
14.1
|
11.7
|
10.7
|
|
E222
|
22.0
|
18.0
|
3.5
|
1.5
|
14.7
|
14.5
|
11.2
|
11.1
|
|
E223
|
23.0
|
18.0
|
4.0
|
1.5
|
17.7
|
17.5
|
14.5
|
13.2
|
|
E224
|
24.0
|
18.0
|
4.0
|
1.5
|
18.4
|
18.2
|
15.0
|
13.7
|
|
E225
|
25.0
|
22.0
|
4.5
|
2.0
|
26.2
|
25.7
|
19.8
|
18.0
|
|
E226
|
26.0
|
22.0
|
4.5
|
2.0
|
26.3
|
26.0
|
20.5
|
18.5
|
|
E227
|
27.5
|
22.0
|
4.5
|
2.0
|
29.5
|
29.2
|
21.5
|
19.5
|
|
E228
|
28.5
|
22.0
|
4.5
|
2.0
|
30.0
|
29.0
|
22.0
|
20.0
|
|
E229
|
29.5
|
24.0
|
5.0
|
2.0
|
38.5
|
37.5
|
28.0
|
25.5
|
|
E230
|
30.5
|
24.0
|
5.0
|
2.0
|
39.0
|
38.0
|
29.0
|
26.5
|
|
E231
|
31.5
|
24.0
|
5.0
|
2.0
|
40.0
|
39.0
|
29.5
|
27.0
|
|
E233
|
33.5
|
26.0
|
5.0
|
2.0
|
46.0
|
45.5
|
34.5
|
31.0
|
|
E236
|
36.5
|
26.0
|
5.0
|
2.0
|
50.0 |
49.0
|
37.0
|
33.5
|
|
E239
|
39.5
|
26.0
|
5.0
|
2.0
|
53.0
|
52.0
|
39.0
|
35.5
|
|
E242
|
42.0
|
28.0
|
6.0
|
2.0
|
72.5
|
71.0
|
54.0
|
49.5
|
|
E244
|
44.0
|
28.0
|
6.0
|
2.0
|
75.0
|
74.0
|
56.0
|
51.0
|
|
E247
|
47.0
|
28.0
|
6.0
|
2.0
|
78.0
|
77.0
|
59.0
|
54.0
|
|
E250
|
50.0
|
30.0
|
6.0
|
2.0
|
89.0
|
88.0
|
68.0
|
62.0
|
|
E252
|
52.0
|
30.0
|
6.0
|
2.0
|
91.0
|
90.0
|
82.5
|
73.2
|
