Rute für PCB-tool
Rute für PCB-tool
1, Dichte: 14,0-14.9 g/cm3
2, Komposition: WC Co, WC-TiC-TaC-Co
3, Fl?che: Sintering Oberfl?che, Boden-Oberfl?che.
4, k?nnen je nach Anforderungen des Kunden gestaltet werden.
Verschiedenen Typen und Gr??en von Drill & Fr?sen Cutter & PCB.
|
Grade |
Co |
Grain Size |
Hardness |
Density |
Toughness |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.80 |
290 |
|
YG07X |
7 |
1-2 |
91.2 |
14.75 |
310 |
|
YG10UF |
10 |
0.6-0.8 |
91.7 |
14.40 |
400 |
|
YG05UF |
5 |
<0.6 |
94.0 |
14.80 |
350 |
|
YG06UF |
6 |
<0.6 |
94.5 |
14.65 |
360 |
|
YG07UF |
7 |
<0.6 |
93.0 |
14.65 |
380 |
|
YG10UF |
10 |
<0.6 |
92.3 |
14.35 |
350 |
|
YG06CF |
6 |
0.8-1 |
92.2 |
14.85 |
350 |
|
YG10UF |
10 |
0.6-0.8 |
91.8 |
14.40 |
350 |
|
YG12UF |
12 |
0.6-0.8 |
91.3 |
14.08 |
370 |
|
YG12UF |
12 |
<0.6 |
92.4 |
14.15 |
400 |

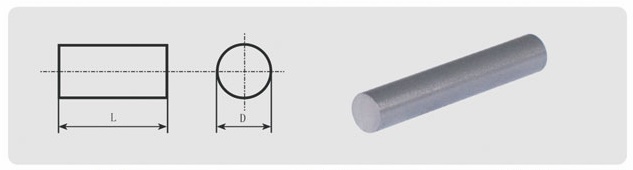

Hartmetall-St?be für PCB-tools
|
||
| Specification | Tolerance of diamete(mm) | Tolerance of length(mm) |
|---|---|---|
| dia3.25x38.5 | -/+0.05 | -/+0.2 |
| dia4.0x38.5 | -/+0.05 | -/+0.2 |
| dia4.5x38.5 | -/+0.05 | -/+0.2 |
| dia5.0x38.5 | -/+0.05 | -/+0.2 |
| dia5.5x38.5 | -/+0.05 | -/+0.2 |
| dia6.5x38.5 | -/+0.05 | -/+0.2 |
| dia3.5x12.8 | -/+0.1 | -/+0.2 |
| dia4.0x12.8 | -/+0.1 | -/+0.2 |
| dia4.5x12.8 | -/+0.1 | -/+0.2 |
| dia5.0x12.8 | -/+0.1 | -/+0.2 |
| dia5.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.0x12.8 | -/+0.1 | -/+0.2 |
| dia6.5x12.8 | -/+0.1 | -/+0.2 |
| dia6.85x12.8 | -/+0.1 | -/+0.2 |
| dia7.0x12.8 | -/+0.1 | -/+0.2 |
| dia3.26x14.0 | -/+0.05 | -/+0.2 |
| dia3.05x12.7 | -/+0.05 | -/+0.2 |
| dia3.05x13.1 | -/+0.05 | -/+0.2 |
| dia3.05x38.6 | -/+0.05 | -/+0.2 |
| dia3.05x14.1 | -/+0.05 | -/+0.2 |
| dia3.05x14.6 | -/+0.05 | -/+0.2 |
| dia3.05x15.1 | -/+0.05 | -/+0.2 |
| dia3.05x15.6 | -/+0.05 | -/+0.2 |
Hinweis
(1) Die magnetische S?ttigung der alle Sorten der Zementkarbid ist: 135-160 emu/g.
2. WC Korngr??e: gut = 1.4μm ~ 2.5μm, Medium = 2.5μm ~ 5.0μm, Coarse≥5.0μm.
3. Spezifische Klasse k?nnen je nach Kundenwunsch gestaltet werden.
