Indexable Inserts Type T3Y
Indexable Inserts Type T3Y
For making 90°internal and boring tools,suitable for heavy feed roughing
 |
 |
|
Type
|

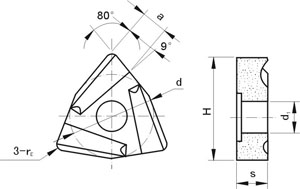

Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
T31310Y
|
13.0
|
4.5
|
1.0
|
5.0
|
5.2
|
16.1
|
9.7
|
9.5
|
7.9
|
7.1
|
|
T31310Y L
|
||||||||||
|
T31610Y
|
16.0
|
5.5
|
1.0
|
6.5
|
6.2
|
20.0
|
17.3
|
17.0
|
14.6
|
13.2
|
|
T31610YL
|
||||||||||
|
T31910Y
|
19.0
|
7.0
|
1.0
|
7.0
|
7.2
|
23.9
|
31.8
|
31.5
|
27.4
|
24.3
|
|
T31910YL
|
||||||||||
