Tungsten carbide brazed tips
Brazed tips type A4

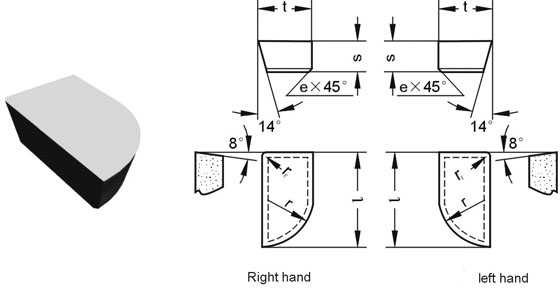

Tungsten carbide brazed tips type A4
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
|||||||||
|
Right
|
Left
|
l
|
t
|
s
|
r
|
rε
|
e
|
YG6
|
YG8
|
YT5
|
YT14
|
|
A406
|
/
|
6.0
|
5.0
|
2.5
|
5.0
|
0.5
|
/
|
1.0
|
0.9
|
0.8
|
0.7
|
|
A408
|
/
|
8.0
|
6.0
|
3.0
|
6.0
|
0.5
|
/
|
1.8
|
1.8
|
1.4
|
1.3
|
|
A410
|
A410Z
|
10.0
|
6.0
|
3.5
|
6.0
|
1.0
|
0.8
|
2.4
|
2.4
|
1.8
|
1.7
|
|
A412
|
A412Z
|
12.0
|
8.0
|
4.5
|
8.0
|
1.0
|
0.8
|
5.0
|
4.9
|
4.2
|
3.9
|
|
A416
|
A416Z
|
16.0
|
10.0
|
5.5
|
10.0
|
1.0
|
0.8
|
10.4
|
10.2
|
8.6
|
8.0
|
|
A420
|
A420Z
|
20.0
|
12.0
|
7.0
|
12.5
|
1.0
|
0.8
|
19.4
|
19.0
|
17.0
|
15.6
|
|
A425
|
A425Z
|
25.0
|
15.0
|
8.5
|
16.0
|
1.0
|
0.8
|
37.0
|
36.4
|
32.5
|
30.0
|
|
A430
|
A430Z
|
30.0
|
16.0
|
6.0
|
16.0
|
1.0
|
0.8
|
36.0
|
35.4
|
30.0
|
27.9
|
|
A430A
|
A430AZ
|
30.0
|
16.0
|
9.5
|
16.0
|
1.0
|
0.8
|
54.2
|
53.2
|
47.0
|
43.7
|
|
A440
|
A440Z
|
40.0
|
18.0
|
8.0
|
18.0
|
1.0
|
0.8
|
72.8
|
71.4
|
62.0
|
57.7
|
|
A440A
|
A440AZ
|
40.0
|
18.0
|
10.5
|
18.0
|
1.0
|
1.2
|
93.5
|
91.5
|
79.0
|
73.5
|
|
A450
|
A450Z
|
50.0
|
20.0
|
8.0
|
20.0
|
1.5
|
0.8
|
103.0
|
101.0
|
87.0
|
81.0
|
|
A450A
|
A450AZ
|
50.0
|
20.0
|
12.0
|
20.0
|
1.5
|
1.2
|
151.0
|
148.0
|
127.0
|
118.5
|
