Tungsten carbide brazed tips

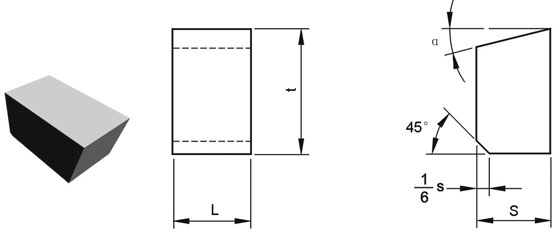

Brazed tips type D
Tungsten carbide brazed tips type D
 |
|
Type
|
Dimension (mm)
|
|||
|
L
|
t
|
s
|
ɑ
|
|
|
D3
|
3.5
|
8.0
|
3.0
|
/
|
|
D4
|
4.5
|
10.0
|
4.0
|
14°
|
|
D5
|
5.5
|
12.0
|
5.0
|
14°
|
|
D6
|
6.5
|
14.0
|
6.0
|
14°
|
|
D8
|
8.6
|
16.0
|
8.0
|
14°
|
|
D10
|
10.5
|
18.0
|
10.0
|
14°
|
|
D12
|
12.5
|
20.0
|
12.0
|
14°
|
